High Precision Ultrasonic Thickness Gauge

YUSHI PM5 Series Ultrasonic thickness gauge yog qhov zoo tshaj plaws ultrasonic thickness gauge. Hauv PM5 Series, YUSHI muaj PM5 Gen2, PM5, PM-5DL Ultrasonic Thickness Gauge.PM5 Gen2 yog cov khoom lag luam tseem ceeb ntawm peb lub tuam txhab.Thiab nws yog qhov tshiab tshaj plaws thiab ua haujlwm zoo tshaj plaws UT Thickness Gauge launched hauv 2024, uas tuaj yeem daws txhua yam teeb meem nyuaj txog kev ntsuas thickness.

Lub PM5 Gen2 ultrasonic thickness gauge yuav siv tau nrog ncua kab probes, hu rau probes, tiv thaiv zaj duab xis probes, cwj mem probes, immersion probes thiab siab kub probes.Qhov kev sojntsuam zaus ntau yog 0.5-20MHz.and custom-ized probes thiab ntsuas fixtures yuav siv tau raws li qhov yuav tsum tau ua kom tau raws li ntau yam kev ntsuas.

Cov txheej txheem kev teeb tsa ntawm PM5 Gen2 suav nrog ntau lub zog thiab yooj yim-rau-siv ntsuas kev ua haujlwm, nrog rau ntau txoj hauv kev rau kev siv tshwj xeeb.Cov kev xaiv ua haujlwm no tuaj yeem siv los daws cov teeb meem kev ntsuas uas tsis tuaj yeem ua tiav los ntawm cov qauv ntsuas. oxide txheej ntawm phab ntsa sab hauv ntawm lub boiler raj tuaj yeem ntsuas tau qhov tseeb, thiab cov ntaub ntawv ntau txheej kuj tuaj yeem ntsuas hauv txheej.

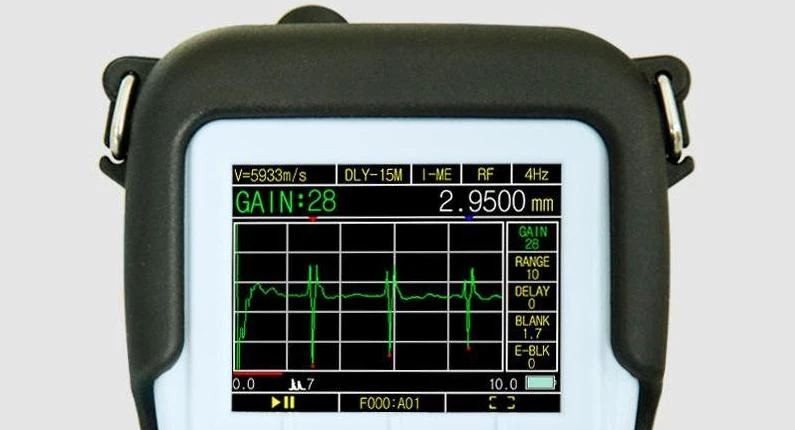

Lub tsev kaw yog tsim los kom tau raws li IP67, uas tuaj yeem tiv taus qhov chaw hnyav nrog cov av noo lossis plua plav. Cov xim TFTLCD zaub muaj cov ntawv loj, meej, ci ntsa iab thiab pom kev zoo.Lub vaj huam sib luag nyees khawm ntawm lub thickness ntsuas yog qhov yooj yim, thiab tus neeg teb xov tooj tuaj yeem nkag mus rau hauv cov ntawv qhia zaub mov kom nkag tau rau txhua qhov haujlwm.Cov cuab yeej los ntawm cov qauv siv roj hmab tiv thaiv khau raj nrog lub bracket. , uas muab lub kaum sab xis saib zoo tshaj plaws ntawm lub vijtsam thaum ntsuas thiab tso cai rau lub ntsuas ntsuas kom ruaj khov thiab ua haujlwm nrog ib txhais tes.

1.Color Screen, Yooj yim rau kev khiav lag luam, ua haujlwm ntev thiab txhim khu kev qha

● Ntshiab thiab ci xim Screen

● IP67 Dustproof thiab Waterproof

● Kev ua haujlwm yooj yim

2.Powerful Features nyob rau hauv daim ntawv thov ntsuas

● Lub Sijhawm Dependent Gain: Qhov pib pulse lossis interface echo tuaj yeem txo tau zoo los ntawm kev txo qhov pib nce, thiab cov ncha hauv qab ntawm cov qauv kuaj kuj tuaj yeem nce ntxiv los ntawm kev nce siab tshaj plaws rau kev ntsuas yooj yim.

● Dual Detection Polarity: Lub polarity ntawm lub ncha muaj feem xyuam rau cov txheeb ze acoustic impedance ntawm ob qhov nruab nrab (qhov ntom X suab tshaj tawm). Cov khoom sib txawv muaj qhov sib txawv acoustic impedance. Nyob rau hauv cov xwm txheej zoo li no, nws yog ib qho tsim nyog yuav tsum tau hloov qhov cuam tshuam echo polarity chaw kom tswj tau. ntsuas qhov tseeb.

Kev ntsuas hom: Muaj plaub hom ultrasonic ncha: tus qauv, thawj ncov, ncov thiab qhov ua siab tshaj.

▲ Standard: Thawj lub ncov ntawm lub hauv qab echo los ntawm lub rooj vag

▲ Thawj Peak: Thawj lub ncov ntawm ib pawg nthwv dej hla lub rooj vag

▲ Peak: Lub ncov siab tshaj plaws hauv cov nthwv dej

▲ Summit: Lub ncov siab tshaj plaws hauv txhua pab pawg ntawm nthwv dej

1.Oil thiab gas pipeline: ntsuas cov khoom los ntawm txheej txheej; 3PE anti-corrosion txheej pipeline thickness ntsuas; Bimetallic composite panels thickness ntsuas

2.Automotive qhov chaw: Tsheb ntawv hlau stamping qhov chaw thickness ntsuas

3.Inner phab ntsa oxide txheej thickness ntsuas

4.Cov khoom siv hlau nrog txheej thickness ntsuas

5.Absorbing txheej khoom thickness ntsuas

6.Carbon fiber ntau thickness ntsuas

7.Plastic pipeline thickness ntsuas

8.Thickness ntsuas rau puab sheath ntawm lub cable

9.Silastic thickness ntsuas

10.Acrylic thickness ntsuas

11.Nodularity ntawm cov cam khwb cia hlau ntsuas

12.Qe plhaub, iav fiber ntau thickness ntsuas

● Cov khoom siv feem ntau tuaj yeem ntsuas tau los ntawm ib qho kev hloov pauv hloov pauv

● Kev ntsuas ntau: 0.01mm ~ 38m, nyob ntawm cov ntaub ntawv, sojntsuam hom thiab xaiv cov yam ntxwv

● TDG Kev Ua Haujlwm: Thawj lub mem tes lossis qhov cuam tshuam cuam tshuam tuaj yeem txo tau zoo los ntawm kev txo qis qhov pib nce thiab qhov ncha hauv qab ntawm cov qauv ntsuas tuaj yeem nce los ntawm kev nce siab tshaj plaws, ntau yam, ncua, dawb paug, thiab lwm yam.

● Ntsuas hom: IE, IEE, I-ME, AUTO, PE, EE, E-EV

● Kev daws teeb meem: Cov qauv kev daws teeb meem yog 0.001mm

● Ntau Qhov Ntsuas: mm, nti, mil, μm

● Kev ntsuas kub siab: Kub txog li 500 degree

● Default System Configuration: Rau cov neeg siv yooj yim, lub neej ntawd tej yam kev mob ntawm lub probes siv los ntawm lub ntsuas tau teem.

● Freeze Function: Calibration tuaj yeem ua tau ntawm cov dej khov nab kuab, nrog rau kev kho qhov nce, ntau, ncua, dawb paug, thiab lwm yam.

● Full-Screen Waveform Display Function: Ua kom cov ncha zaub thaj tsam nce 20%, muab tus neeg teb xov tooj saib qhov rais loj.

● Echo Strength Indication: Lub ncha muaj zog dua, qhov taw qhia ntau dua tau tshwm sim, uas yog siv nyob rau hauv cov kev ntsuas digital ntsuas qhov sib cuam tshuam qhov twg lub waveform tsis pom.

● Sijhawm-raws li B-scan hom: Siv los soj ntsuam qhov profile hauv qab ntawm lub workpiece raug ntsuas.

● Txawv / txo tus nqi hom: Qhia qhov txawv ntawm qhov ntsuas thickness thiab nominal thickness, thiab feem pua ​​ntawm qhov sib txawv rau nominal thickness.

● Adjustable Gate Height: Tsuas yog thaum lub ncha siab dua lub rooj vag, lub ntsuas yuav ntes lub ncha thiab tau txais qhov ntsuas qhov ntsuas.

● Kev Ntsuas Hom: Txheem, Thawj Peak, Peak, Qhov Rooj Sib Tham

● Visual Measurement Point Identification: Theem 0 degree ,30 degree ,90 degree .180 degree .

● Digital Amplification: Lub ncha qhov siab yuav hloov pauv raws li qhov loj ntawm qhov sib npaug, xws li 1.0 mus rau 7.0 zaug.

● Cov txheej txheem calibration nrog waveform qhia, waveform tuaj yeem hloov kho kom raug kom tsis txhob calibration yuam kev.

● Ntau yam Zero Calibration Hom: AUTO, AIR, DISK, BLOCK, DUAL-ECHO, teeb xoom taw tes, ib-taw tes calibration, ob-point calibration.

● Cov Ntaub Ntawv Velocity List: Nws muaj txiaj ntsig yog tias cov khoom siv suab nrawm tsis paub thiab cov qauv tuab tsis tuaj yeem tau los ntawm cov khoom siv.

● Suab Velocity Range:310m/s~18699m/s;0.0122-0.7362 in/us.

● Kev sojntsuam hom: Ncua kab sojntsuam, Tiv tauj sojntsuam, tiv thaiv zaj duab xis sojntsuam, cwj mem sojntsuam, kev sojntsuam immersion.

● Tsis siv neeg sib tw ntawm cov mem tes sib kis raws li kev sojntsuam zaus.Qhov rhiab heev yog 6dB siab dua li cov qauv dhau los, cov cuab yeej muaj qhov nqaim pulse waveform zoo dua.

● Rectification: RF, RF-, TIV THAIV, PIB+, HALF-.

● IP67 plua plav pov thawj thiab ntsuas dej tsis zoo.

● Qhov zoo thiab tsis zoo Dual Detection Polarity: Lub polarity ntawm lub ncha teeb liab muaj feem xyuam rau cov txheeb ze acoustic impedance ntawm ob lub xov xwm.Lub acoustic impedance ntawm ob cov ntaub ntawv yog thim rov qab, lawv ncha polarity kuj yuav thim rov qab. Nyob rau hauv xws li mob, nws yog tsim nyog los hloov qhov cuam tshuam echo polarity nqis kom tswj tau qhov ntsuas qhov tseeb.

● Kev xaiv cia: Kev xaiv cia tuaj yeem khaws 100,000 thickness qhov tseem ceeb thiab ● 400 parameter configuration cov ntaub ntawv, thiab nruab nrog host computer software thiab USB disk.

● Qhov rai Hom Kev Xaiv: Qhov chaw pib thiab ntau yam ntawm cov ntaub ntawv khaws cia yog qhov sib txawv thiab ua raws li qhov ncua sij hawm thiab ntau yam ntawm lub qhov rais tso saib. Qhov siab tshaj plaws ncua mus txog 38 meters.

● Digital Noise Reduction Option:

● AUTO-freeze Option

● Directional Capture Option

● Dual-txheej thiab ntau txheej ntsuas kev xaiv

● Cov Kev Xaiv Loj Loj: Cov kev xaiv loj ntawm PM5 Gen2 siv cov kev ntsuas sib xyaw ntawm cov txheej txheem pulse-echo, thiab tso saib ntau txog 38 meters.

1.Storage Option: Qhov kev xaiv cia tuaj yeem khaws 100, 000 thickness qhov tseem ceeb thiab 400 parameter configuration cov ntaub ntawv, thiab nruab nrog host computer software thiab USB disk

2.Window Mode Option: Lub ntsiab lus pib thiab ntau yam ntawm cov ntaub ntawv khaws cia yog qhov sib txawv thiab ua raws li qhov ncua sij hawm thiab ntau yam ntawm lub qhov rais tso saib.Qhov siab tshaj plaws ncua mus txog 38 meters.Ua qhov ntsuas tau yooj yim thiab ua tau zoo, nce qhov ntsuas ntau, txhim kho qhov ntsuas ceev, txhim kho cov suab nrov txo cov nyhuv.

3.Digital Noise Reduction Option: Nws yog tsuas yog siv los txo qhov cuam tshuam ntawm lub suab nrov thiab txhim kho lub teeb liab-rau-suab nrov piv.Cov nyhuv tseem ceeb dua thaum siv lub qhov rais hom.

4.AUTO-Freeze Option: Plaub qhov kev tshwm sim tuaj yeem teeb tsa, lub siab tshaj plaws nthwv dej, tus naj npawb ntawm cov nthwv dej sib law liag, tus naj npawb ntawm ncha, thiab lub hom phiaj tuab ntau. khov.

5.Directional Capture Options: Tsib hom tuaj yeem xaiv rau kev coj mus rau kev ntes, tus nqi tsawg kawg, tus nqi siab tshaj, nthwv dej siab tshaj, feem ntau cov nthwv dej tsis tu ncua, thiab feem ntau ncha.

6.Temperature Compensation Option: Lub suab nrawm ntawm cov khoom hloov pauv nrog qhov kub thiab txias, uas cuam tshuam rau qhov ntsuas qhov tseeb.Qhov kub thiab txias ua haujlwm ntawm PM5 Gen2 yuav cia li ua qhov ntsuas kub thiab ntsuas ntsuas raws li qhov ntsuas qhov ntsuas qhov ntsuas qhov ntsuas ntsuas qhov ntsuas kub thiab qhov ntsuas qhov ntsuas kub, thiab tso saib tus nqi kho thickness.

7.High-speed Measurement & Simultaneous Directional Display Options: Kho nyob rau hauv 16Hz ib, nrog lub qhov rais hom ntsuas tus nqi mus txog 2KHz.Measurement ceev yog muaj feem xyuam rau lub tswb, ntes, pib-freeze, B-scan, thiab real-time kis.The npo qhia waveforms thiab thickness qhov tseem ceeb synchronously ntawm lub teeb hloov tshiab tus nqi, thiab 8 directional zaub schemes yuav teem.

8.High Resolution Options: Cov zaub daws teeb meem (I-ME hom) mus txog 0.0001mm, 0.1um, 0.00001in, 0.01mils.

9.Large Range Options: Ib hom kev ntsuas sib xyaw ntawm txoj kev pulse-echo, tso saib ntau txog 38 metres.Qhov kev ua kom pom tseeb yog kev tswj xyuas qhov tseeb thaum tswj tau ntau yam.

10.COAT Hom Kev Xaiv: suav nrog PE ntsuas hom thiab lub tsho ntsuas hom rau kev ncua kab probes.Measures nyias txheej ntawm ntoo, pob zeb, cov ntaub ntawv sib xyaw, hlau, thiab lwm yam.

11.Double Layer Measurement Option: Ntsuas thiab tso saib cov tuab ntawm ob txheej ntawm cov ntaub ntawv tib lub sijhawm.Includes multi-scan thiab time-sfference function.Typical applications muaj xws li ob txheej txheej thiab coated metallic cov ntaub ntawv.

12.Oxide Layer Measurement Option: Siv los ntsuas lub thickness ntawm cov oxide txheej nyob rau hauv lub puab phab ntsa ntawm boiler yeeb nkab fittings.Lub thickness ntawm cov hlau substrate thiab oxide txheej tuaj yeem tshwm sim ib txhij.Kev ntsuas ntau yam ntawm oxide txheej yog {{1 }}.25mm ~ 1.25mm los ntawm tus qauv D15A sojntsuam.

13.Multi-Layer Measurement Option: Ntsuas thiab tso saib cov tuab ntawm tsib txheej txheej nyob rau tib lub sijhawm, thiab tuaj yeem tso saib tag nrho cov tuab ntawm txhua txheej. .

14.Real-Time Kev Sib Txuas Lus Kev Xaiv: Cov cuab yeej tuaj yeem tswj tau los ntawm lub khoos phis tawj sab saud, thiab tus nqi thickness, waveform thiab tsis tuaj yeem xa mus rau lub sijhawm tiag tiag, suav nrog lub khoos phis tawj sab sauv ntsuas software.Suitable rau kev ntsuas online thiab kev txhim kho theem nrab.

15.Kev kuaj mob tej thaj chaw deb thiab kev pab txhawb nqa: Kev sib txuas lus ntawm lub sijhawm thiab wireless WIFI yuav tsum tau teeb tsa

Tsis muaj.	Lub npe	Chav tsev	Tus lej
1	Ultrasonic Thickness Gauge	Teeb	1
2	Lub raj mis Couplant	Pc	1
3	Ib qho kev sojntsuam D15A	Pc	1
4	Ib qho kev sojntsuam Cable	Pc	1
5	Roj Hmab tiv thaiv Case	Pc	1
6	Nqa Case	Case	1
7	Phau ntawv ua haujlwm	Luam	1
8	Daim ntawv pov thawj zoo	Luam	1
9	Daim Ntawv Kho Mob	Luam	1
10	Daim ntawv teev npe	Luam	1
11	USB Flash Drive	Teeb	1
12	USB Cable	Pc	1
13	Daim ntawv pov thawj ntawm Calibration	Luam	1
