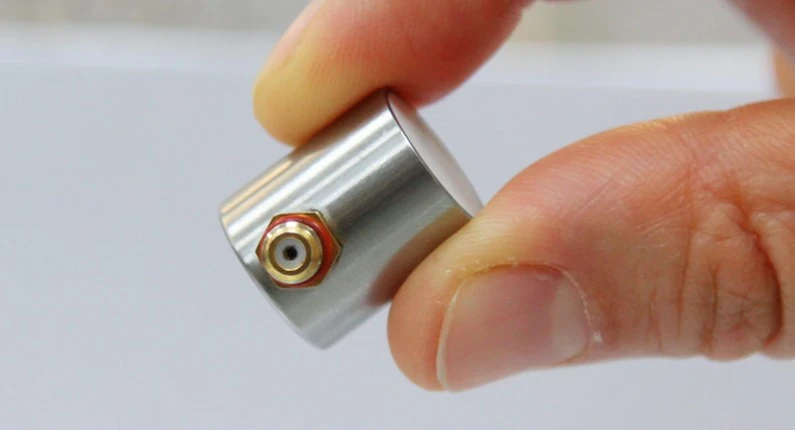

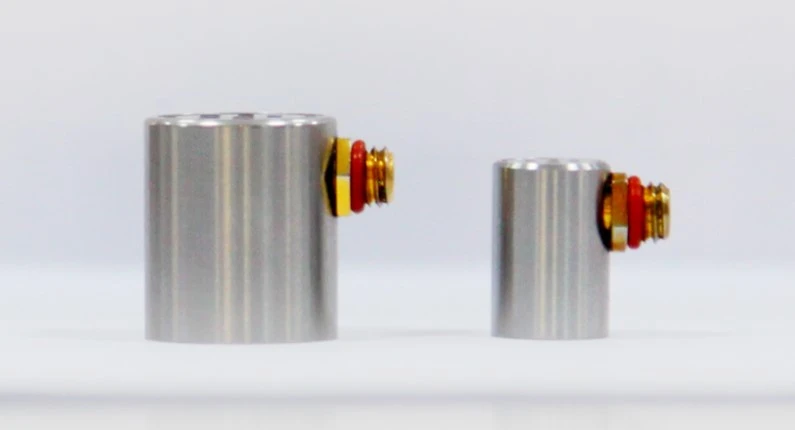

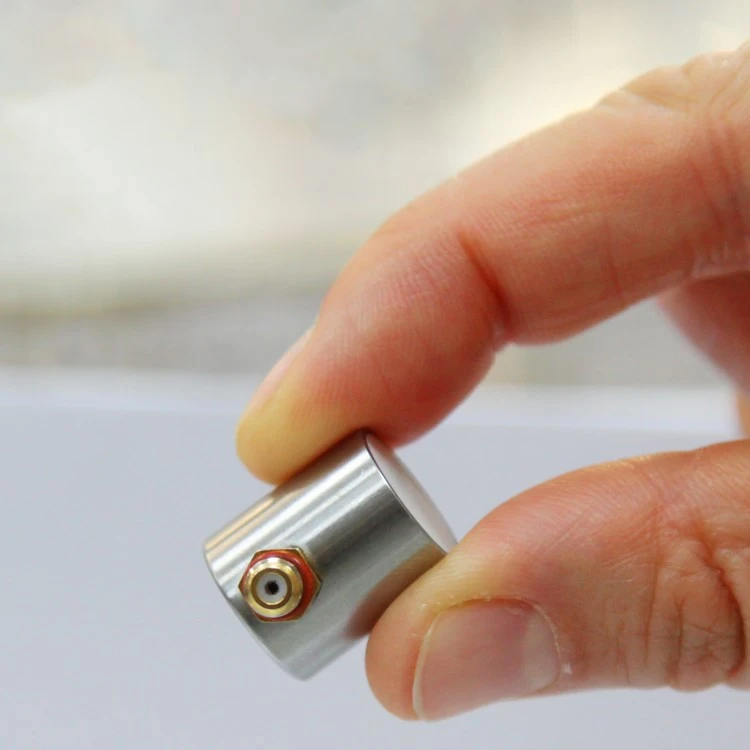

Dab tsi yog Ultrasonic Contact Probe?
Ultrasonic contact probe ua rau longitudinal waveform kom ncaj qha mus cuag cov khoom kuaj. Nws tsuas yog ua tiav qhov no los ntawm kev siv ib lub ntsiab lus los tsim thiab tau txais cov mem tes ncha. Lub hom phiaj ntawm kev siv ultrasonic kev sojntsuam yog kom kov yeej qhov roughness ntawm qhov chaw kuaj thiab nkag mus rau cov khoom tuab thiab muaj zog-attenuation.
Cov yam ntxwv tshwj xeeb ntawm Ultrasonic Contact probes
Muaj ntau ntau yam ntawm Ultrasonic Contact Probes uas ua rau hom kev sojntsuam no txawv nrog lwm hom kev sojntsuam.
● Tsawg zaus: Ultrasonic Contact Probes muaj qhov tsawg zaus ntawm 1-10MHz. Cov yam ntxwv no tuaj yeem pab cov mem tes ncha nkag mus rau cov khoom siv tuab tuab thiab muaj zog-attenuation.
● Siv tib lub ntsiab lus: Nws siv tib lub ntsiab lus los tsim thiab tau txais cov mem tes echoes.
● Flexibility: Kev sib cuag tuaj yeem ua los ntawm ntau cov lus qhia los ntsuas ntau hom duab.
Dab tsi yog cov ntawv thov ntawm Ultrasonic Hu rau Kev Tshawb Fawb?

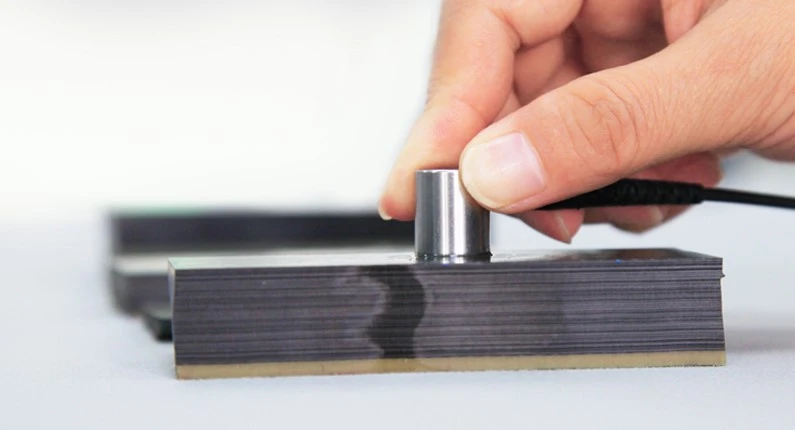

Lub YUSHI Contact Probes tuaj yeem ua tiav qhov tseeb thickness ntsuas rau cov khoom ua haujlwm tau pom hauv qab no:
● Thickness workpieces thiab cov ntaub ntawv nyuaj rau nkag;
● Cov ntaub ntawv sib xyaw;
● Yas, iav, Ntoo, Roj Hmab thiab lwm yam khoom tsis yog xim hlau;
● Hlau workpiece nrog ntau geometries xws li forgings, rods, daim hlau thiab castings, thiab lwm yam;
● Cov khoom siv
Yuav ua li cas xaiv qhov zoo Ultrasonic Contact Probe?
Ua ntej, koj yuav tsum xav txog qhov ntsuas qhov tseeb raws li koj qhov kev ntsuas xav tau. Vim tias qhov kev ntsuas qhov tseeb siab dua tuaj yeem coj tus nqi siab dua rau koj. Peb xav qhia koj kom xaiv cov kev soj ntsuam kom zoo kom tsis txhob nkim peev txheej.
Tom qab ntawd, koj tuaj yeem txiav txim siab txog cov xwm txheej ntawm qhov chaw sim, xws li kev ntxhib los mos, curvature, thiab geometry.Cov yam ntxwv no yeej muaj feem cuam tshuam rau kev xaiv ntawm kev sojntsuam 'zaum thiab cov ntsiab lus' loj.
Thaum kawg, koj yuav tsum nrhiav ib tus neeg muab khoom lag luam NDT txhim khu kev qha thiab kev tshaj lij, leej twg tuaj yeem muab cov kev soj ntsuam zoo rau koj nrog tus nqi pheej yig. YUSHI yuav tsum yog koj qhov kev xaiv zoo tshaj plaws.
Vim li cas koj thiaj tuaj yeem ntseeg YUSHI Instruments?
YUSHI yog ib qho kev lag luam NDT tshiab nrog ntau qhov kev tsim patents. Peb pab neeg tshaj lij tau daws cov teeb meem NDT rau ntau dua 3000 cov neeg siv khoom txawv teb chaws hauv ntiaj teb. Los ntawm YUSHI, koj tuaj yeem tau txais kev sojntsuam thiab lwm yam khoom nrog cov ntawv pov thawj ntawm lub Hoobkas. Thiab peb tuaj yeem muab rau koj nrog 24-teev kev pabcuam online los pab koj daws txhua yam teebmeem NDT.
Technical Specification
|
Qauv |
MHz |
Element Size |
|
|
hauv |
mm |
||
|
C1M13 |
1 |
0.5 |
13 |
|
C2.25M13 |
2.25 |
0.5 |
13 |
|
C5M6 |
5 |
0.25 |
6 |
|
C5M13 |
5 |
0.5 |
13 |
|
C10M6 |
10 |
0.25 |
6 |
